TECHNICAL SPECIFICATIONS

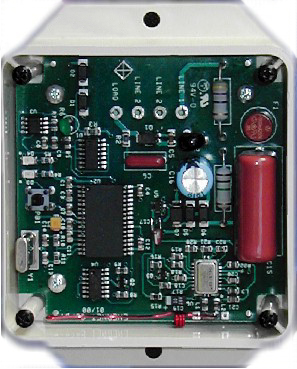

T9000-JBox RCN

GENERAL

Enclosure:

Single PCB

3.25"L x 3.25"W (+0.45" flange on 2-sides) x 1.35"H

Mounting:

Flange flush mount, 1 screw per flange.

ELECTRICAL

Operating Power:

120/208/240 line-voltage @ .6VA quiescent Plus maximum of 12VA triac load*

Input/Output:

1 - pilot duty triac output @ 0.5A max

ESD Withstand Voltage for No Hard Failures:

2.0 kV

Standards:

FCC Part 15

LEDs:

• 1 - Call for HEAT/COOL
• 1 - Service Pin

ENVIRONMENTAL

Temperature Range:

• Operating: 0^o to +70^oC
• Storage: -40^o to +85^oC

Humidity Range:

10% to 95% RH, non-condensing at 70^oC

COMMUNICATION

Physical Layer:

916.5 MHz Amplitude Shift Keyed

Packet Communications Protocol:

ANSI 709.1-1999

Communication Rate:

9600 bps

Options:

Pager-based direct load control

Local operating network capable
