Baseboard Heating Application

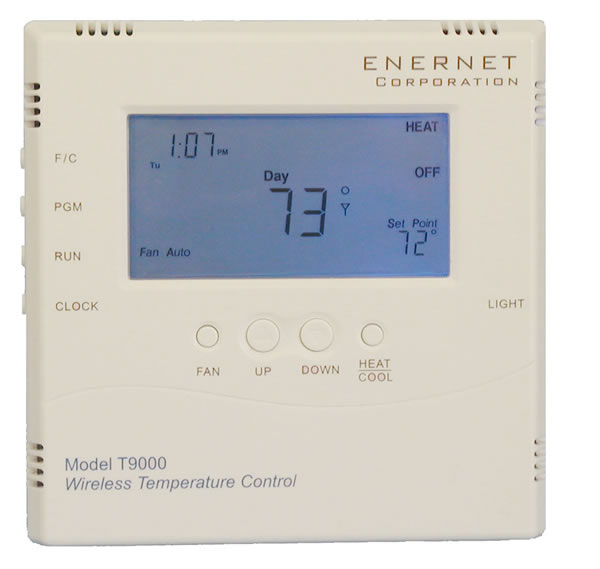

The T9000 Wireless Thermostat System is a perfect retrofit option for electric baseboard heating. It can provide precision temperature control, dramatically improve comfort and save energy.

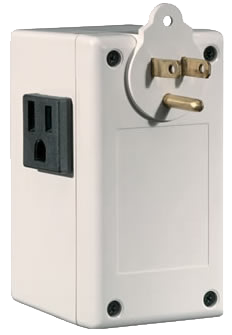

The J-Box RCN (Remote Control Node) shown below can be installed in two ways:

1. Mounting the J-box RCN with an appropriately sized power relay at baseboard heater unit itself, (the J-Box RCN comes in an attractive Ivory colored housing which can be mounted adjacent to the heater).
2. Often the easiest and least expensive method of installation is mounting the J-Box RCN at the circuit breaker panel. In this case, the J-box controls one or more properly sized relays, switching power to dedicated heating circuits. This is a preferred method.

Base Board to JBOX RCN Wiring Example

Commponents involved:
